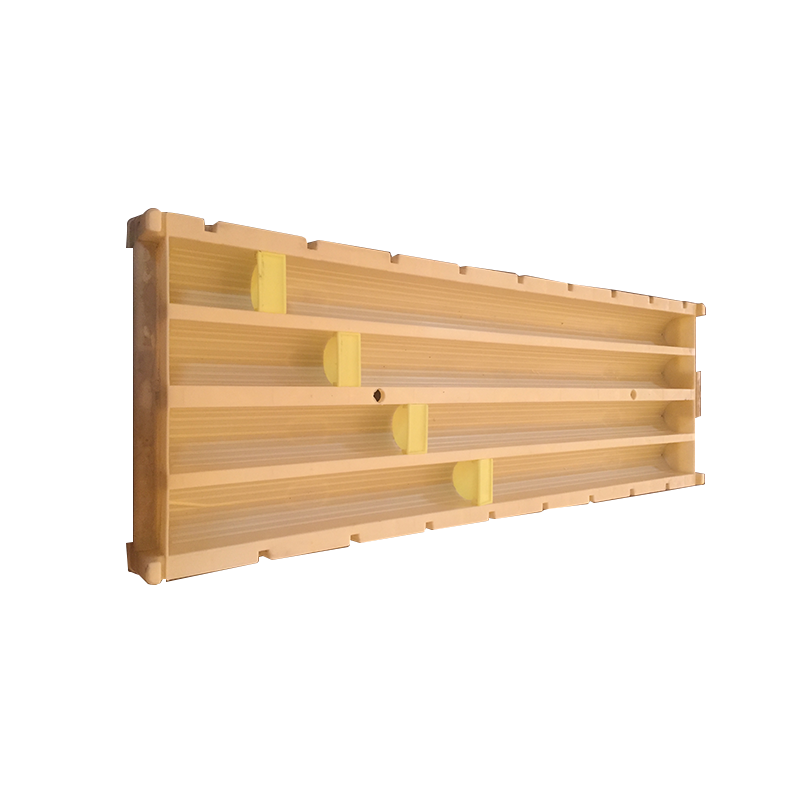

HQ PP PLSATIC CORE TRAY
“DIBIAO” brand- Q series core tray is designed according to
standard wire-line rock core, its model include BQ.NQ.HQ.PQ,and we
also have lid, block and tag as accessories to perfect drilling
work. All our goods are produced by large injection machine, and
A.B.C grade are separated according to different raw material, so
client can choose the suitable core tray.
As a special geological product, core box has strong function and
high design requirements. At present, there are mainly two types of
wood and plastic on the market, but the wooden box body is
gradually replaced by the plastic box body due to the
characteristics of poor weight bearing and easy moth.
Triangle support on the bottom to Strengthen box’s load capacity
Two lines of 7mm width drainage hole on the end to make sure mud
flows smoothly
Block is inserted inside core tray to tell different rock core
apart
Paper tag on the top end to remark core information
30 pieces of core trays can be stacked tightly without falling down
Compare to ordinary type, Q core tray performs excellent under
quite high/low temperature, and its age is much longer.
30 pieces of core trays can be stacked tightly without falling down
Parameter:
| Model | Core diameter (mm) | Single channel width(mm) | Channel number | Net weight
(kg) | Dimension
(mm) | Grade | Raw material | Standard color | Color Optional |
| BQ | 45 | 48 | 6 | 2.06-2.3 | 1070×385×50 | A | premium PP | Light yellow | yes |
| B | Medium PP | Light gray | yes |
| C | Recycled plastic | black | No |
| NQ | 49 | 55 | 5 | 2.1-2.4 | 1070×385×55 | A | premium PP | Light yellow | yes |
| B | Medium PP | Light gray | yes |
| C | Recycled plastic | black | No |
| HQ | 65 | 69 | 4 | 2.1-2.5 | 1070×385×70 | A | premium PP | Light yellow | yes |
| B | Medium PP | Light gray | yes |
| C | Recycled plastic | black | No |
| PQ | 85 | 92 | 3 | 2.6-3.1 | 1070×385×93 | A | premium PP | Light yellow | yes |
| B | Medium PP | Light gray | yes |
| C | Recycled plastic | black | No |
| Lid | ----- | ----- | ------- | 1.2 | 1070*385 | A | premium ABS | Light yellow | yes |
| B | Medium ABS | Light gray | yes |
| Block | --------- | -------- | -------- | ------- | BQ/NQ/HQ/PQ | A | premium ABS | Light yellow | yes |
| Tag | ----- | ----- | ------- | ------ | ----- | ---- | ------ | ------- | ----- |
Packing List:
| Model | Quantity |
| Nude / 20’GP | Nude / 40’GP | Nude / 40’HQ | Pallet (1.1*1.1*2m) |
| BQ | 2150 | 4300 | 5300mm | 168 |
| NQ | 2150 | 4300 | 5300mm | 168 |
| HQ | 1380 | 2760 | 3400mm | 123 |
| PQ | 1200 | 2400 | 2960mm | 108 |
| Lid | 30 pieces into a carton |
| Block | 2000-1000 pieces into a carton |
