crawler chassis rotary farm water well drilling machine

crawler chassis rotary water drilling rig

The common rotary drilling rig, namely the rotary drilling rig with positive circulation mud flushing, consists of a tower, a winch, a rotary table, a drilling tool, a mud pump, a faucet, a motor, etc. During operation,

the power machine drives the rotary table through the transmission device, and the driving drill rod drives the drill bit to rotate the broken rock layer at a rotation speed of 30 to 90 revolutions per minute.

The mud is pumped and pressurized by the mud pump and then is pressed into the hollow drill rod through the faucet above the drill rod, flows downward into the drill bit, and is ejected from the nozzle to cool and lubricate the drill bit;

Debris from the bottom of the well is taken out of the wellhead through an annular channel outside the drill pipe. after settling in the settling tank, mud flows back to the mud tank for recycling.

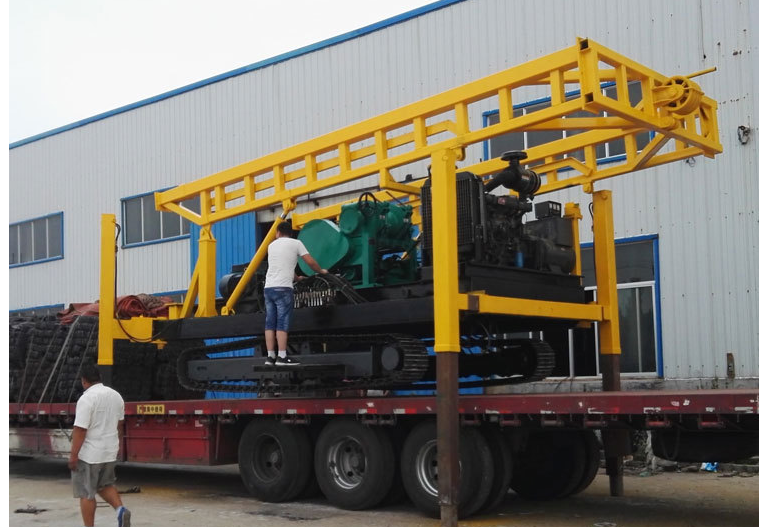

Some rotary drilling rigs are equipped with mud pumps and air compressors at the same time.SPJ300 Water Well Drilling Rig is installed on a crawler.

This crawler chassis drilling rig can work through rotary mud circulation or DTH drilling technique. SPT300 trailer chassis water well drilling rig is suitable for clay, sand, graveland pebble, and rock stratum. We add special device to add & reduce pressure during drilling which can enhance efficiency a lot. High hydraulic leg and hydraulic tower are chosen to save labor and keep safety during working.

Spt 300 drilling rig can be towed and moved by tractors and other tractors, so it is convenient and fast to move and has good maneuverability. This drilling rig is equipped with 108 x 108 x 7500 mm Kelly and Φ 89x6000 mm sub - drill rod.

◎ the main parts of the drilling rig, such as winch, turntable, gearbox, tower and chassis, are produced by our factory independently, with stable and reliable performance.

◎ the drilling rig is suitable for drilling high-rise buildings, bridges, geological mines, ports, dam foundations, water well construction, complicated ground source heat pump, etc.

◎ the drilling rig is simple to operate, has strong usability, convenient maintenance, less investment and quick effect, and is the best product for users.

   ShangDong Geological&Mineral Equipment Ltd Corp was established in 1992 which consists of sales department,processing plant,international trade department, new product R&D and storage department. We are a spirited state-owned company.

 our company is located in East of Jinan city, capital of ShanDong Province, 30000 square meters area. Storage warehouse exceeds 10000 square meters.Our registered capital is 6.89 million RMB, and we have more than 80 staff in which about 1/2 are medium and high engineers. Professional sales manager, product manager and after-sales team are available for you at any time.

 “DI BIAO” is our patent brand for new designed core box. Different from old type, new  series core box is designed as per international standard and made of PE&PP through a special proportion which enhance each index and increase its life a lot. Until now, our products are exported to Europe, Middle Asia, Southeast Asia, Africa and South America, several countries. We win trust and reputation from our dear client and friend.

    “CREATING VALUE FOR CLIENT FOR EVER”is our business principle; “ACCOMPLISH YOU AND ME”is our pursuit. We can grow up all the way only if client can benifit from the cooperation with us.
