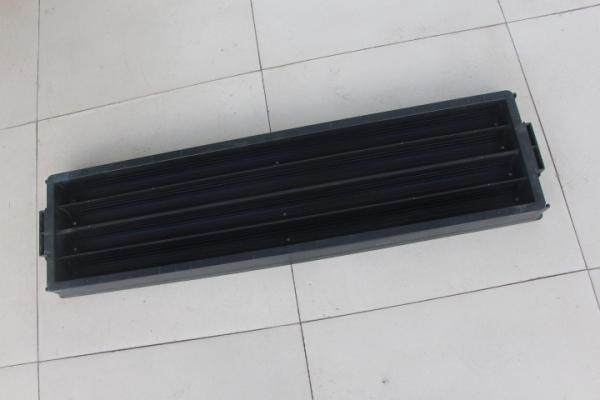

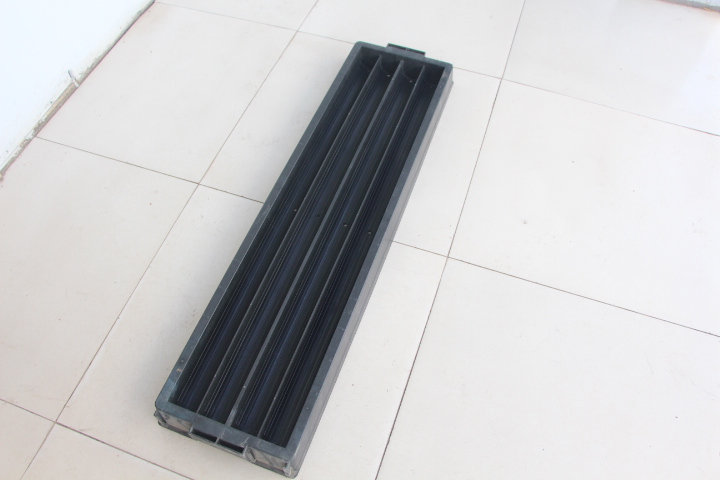

Plastic Core Box For Drilling Explore 55mm Rock Core
“DIBIAO” brand- DB series core tray is designed according to
standard wire-line rock core,
its model include DB-2,DB-3,DB-4 ,DN-5,and we also have lid, block
and tag as accessories to perfect drilling work.
All our goods are produced by large injection machine, and A.B.C
grade are separated according to different raw material, so client
can choose the suitable core tray.
Compare to ordinary type, DB core tray performs excellent under
quite high/low temperature, and its age is much longer.
Triangle support on the bottom to Strengthen box’s load capacity
Two lines of 9mm width drainage hole on the end to make sure mud
flows smoothly
Paper tag on the top end to remark core information
30 pieces of core trays can be stacked tightly without falling down
Casing made from low density polyethylene whole injection, stable
chemical performance, high strength, non-toxic, tasteless, high
temperature resistance, cold resistance, anti-aging, more suitable
for storage and transport of the core in bad environment.
The professional size design makes the core box perfectly match
with the tray, making the core easier to scan, test, record and
store.
The u-shaped bottom surface folding design of the inner groove, the
use of multi-row reinforcement bars and the lateral side gradient
thickening support of the box body have greatly increased the
capacity of the box body to bear weight, and the box body will not
be deformed in long-term use.
Nested fixed between the upper and lower body positioning,
positioning, and between the tray and a positioning block
connection solid, smooth movement, make the stack and save the
storage space, suitable for core security for a long time.
| model | size (mm) | channel width (mm) | channel length (m) | channel quantity
| weight (kg) |
| DB-2 | 1091*282*132 | 114 | 1 | 2 | 3.14 |
| DB-3 | 1091*282*85.5 | 70 | 1 | 3 | 2.68 |
| DB-4 | 1091*282*71.5 | 55 | 1 | 4 | 2.12 |
| DB-5 | 1091*282*64.5 | 45 | 1 | 5 | 2.03 |
